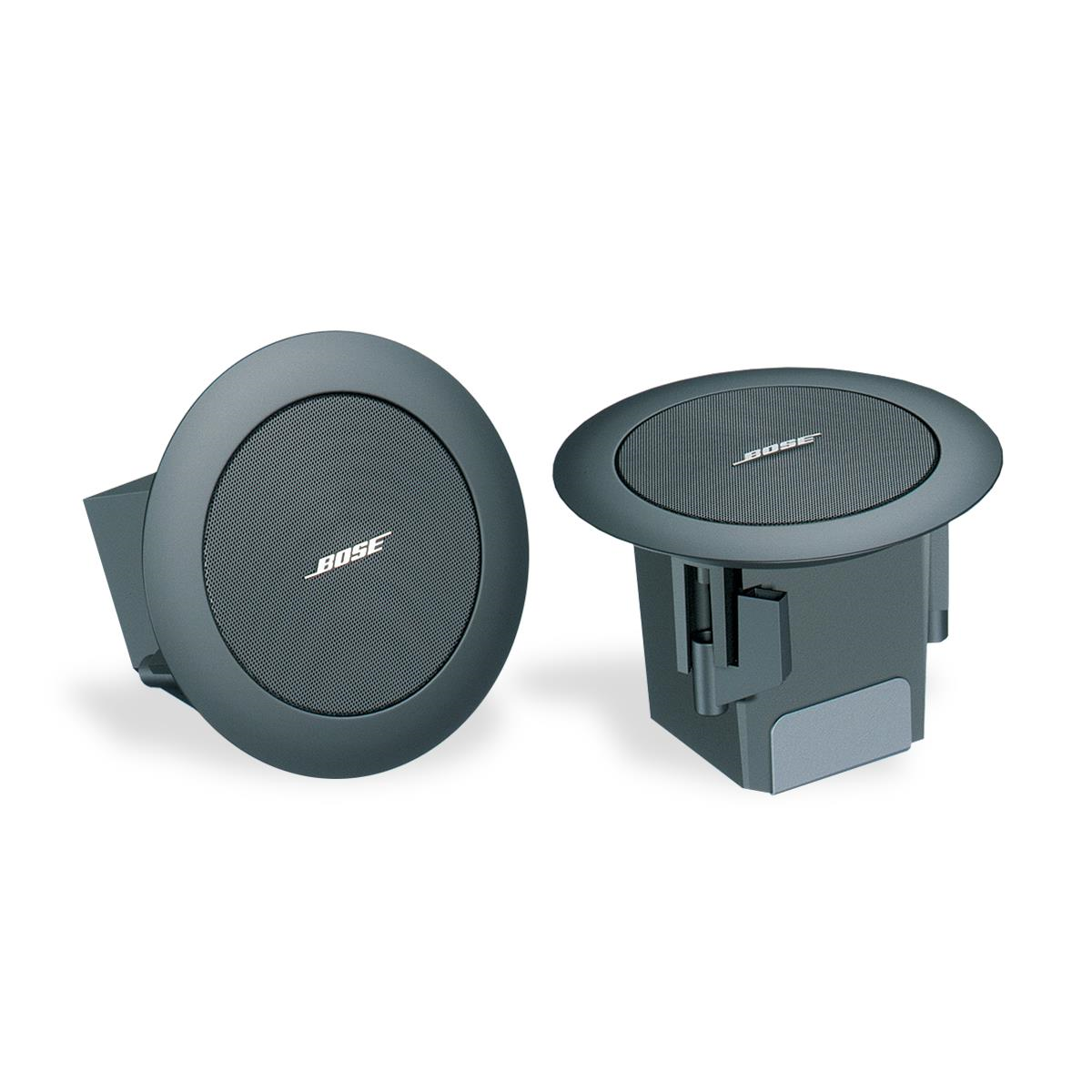

BOSE FREESPACE 3 FLUSH-MOUNT SATELLITES Black

Compare >>

Product details

The Bose Freespace 3 Flush-Mount Satellite Speakers are high-performance, wide-range speakers designed for small and medium-sized applications that require high-fidelity audio reproduction and a vocal and soundbar extended. For indoor applications only.

Product files

Technical data sheet

Overview

The Bose FreeSpace 3 flush-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music.

For indoor applications only.

Features:

Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations

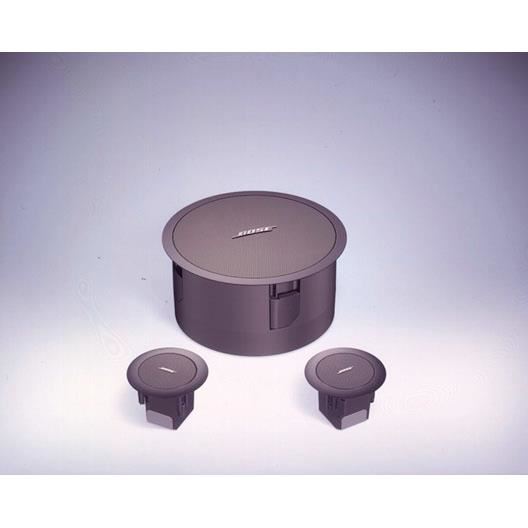

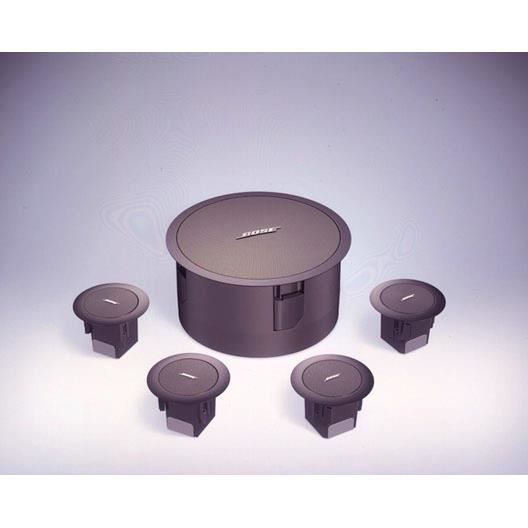

Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules
Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
Flush-mount components are plenum rated when used with the optional plenum cover
Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module
Can be configured for stereo or mono operation

Applications:

Retail stores
Restaurants and bars
Lobbies and conference rooms

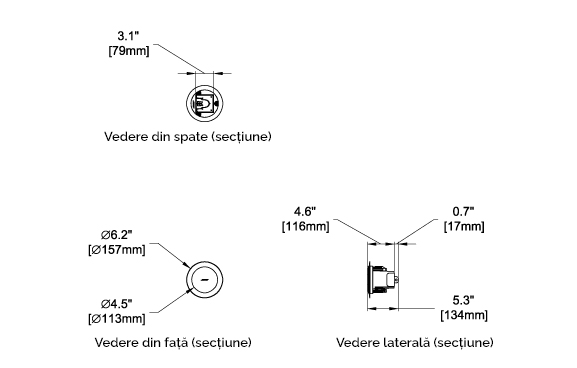

Rear, front and side views (sections):

Overview

Răspuns în frecvență (-3 dB)	50 Hz - 16 kHz (system), 210 Hz - 16 kHz (sateliți)
Gama de frecvențe (-10 dB)	40 Hz - 20 kHz (system), 170 Hz - 20 kH z (sateliți)
Unghi acoperire nominală	170 ° conic
Putere - vârf	System: 70/100 V: 200 W (800 W peak), System Low impedance: 100 W (400 W peak), Satellites: 12W (48W peak)
Sensibilitate (SPL / 1 W @ 1 m)	82 dB SPL (system), 84 dB SPL (satellites)
Presiune sonoră maximă (SPL) calculat 1m	4-Cube System: 6 Ω per channel, 2-Cube System: 5 Ω per channel (surface); 6 Ω per channel (flush)
Presiune sonoră maximă (SPL) calculat, vârf	System: 93 dB (99 dB SPL peak in a 45,000 ft³ room, with RT60 of 1 second, +/- 3 dB); Satellites : 95 dB (101 dB SPL peak)
Culoare	Black
