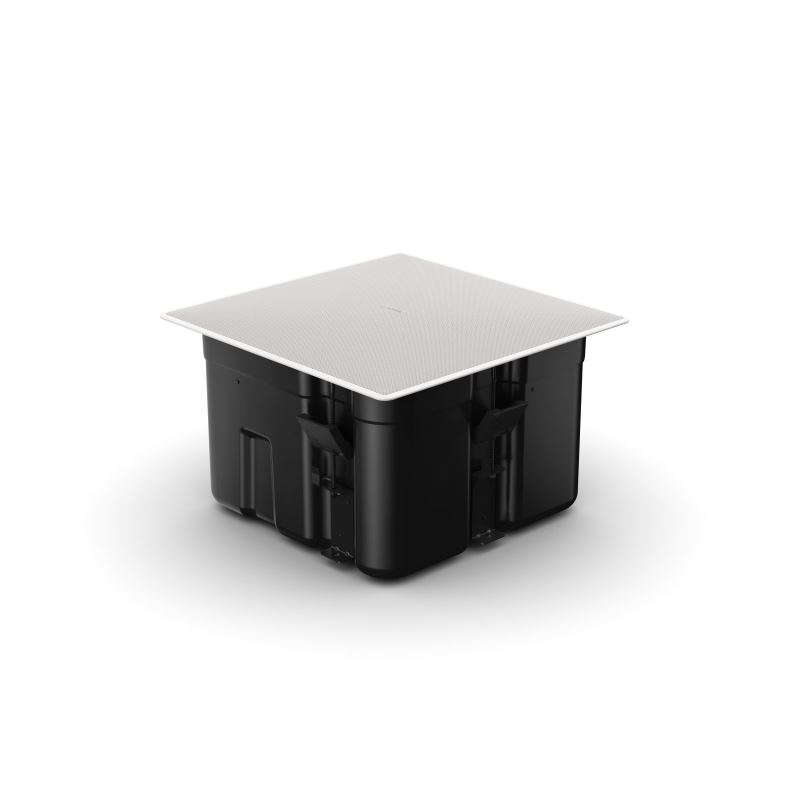

BOSE EDGEMAX EM90 IN CEILING LOUDSPEAKER White
Product details
EdgeMax is a premium product that uses patented Bose PhaseGuide technology. The audio solutions created provide uniform sound coverage in large spaces, respecting the design standards required by architects. They are mounted in the ceiling, positioned towards the edge. The number of speakers required is lower compared to other models of ceiling speakers.
Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.
Features:
- PhaseGuide technology – provides unique asymmetrical vertical pattern for room-filling coverage when mounting near wall-ceiling boundary
- Provides improved room visual appearance – for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers
- Nominal 90° horizontal coverage – designed for in-ceiling mounting near room corners

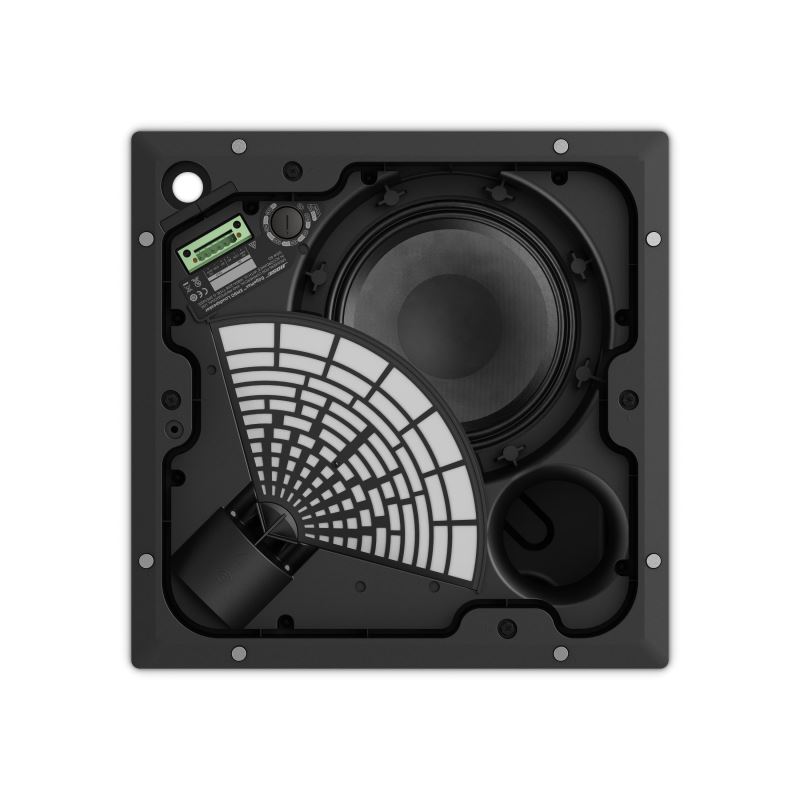

- High-frequency compression driver – for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters
- 8-inch woofer – with wall-boundary loading provides extended bass impact
- 2-way passive crossover with 70/100V transformer

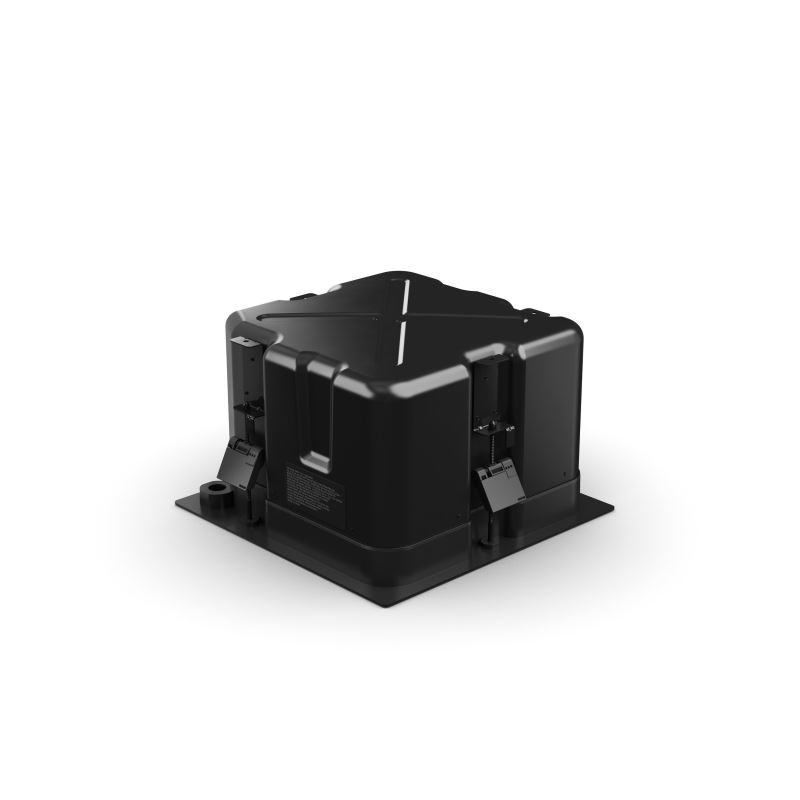

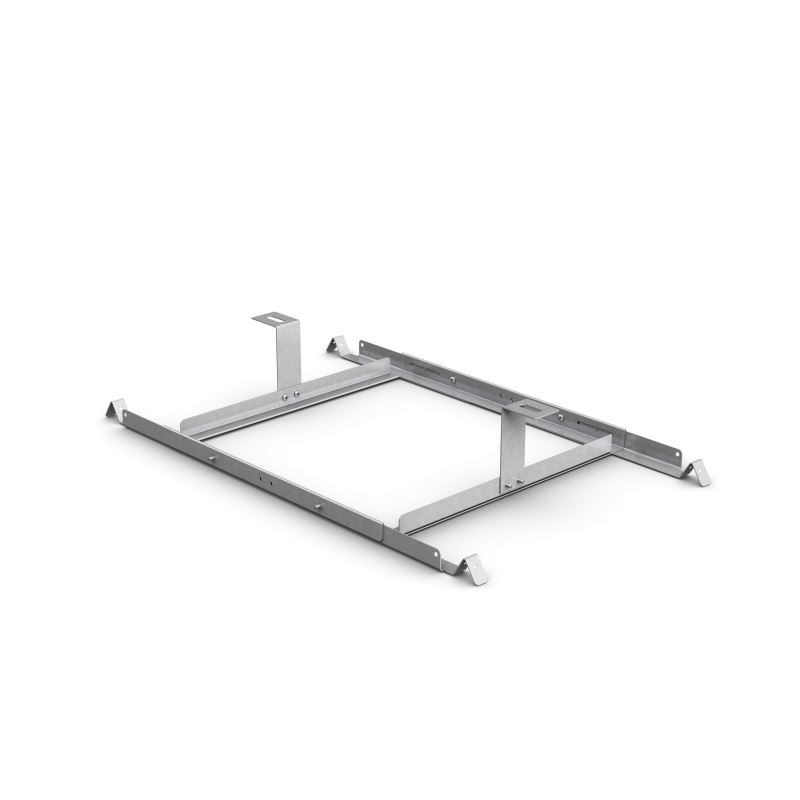

- New auto-hold, spring-loaded mounting arms – for fast, easy installs

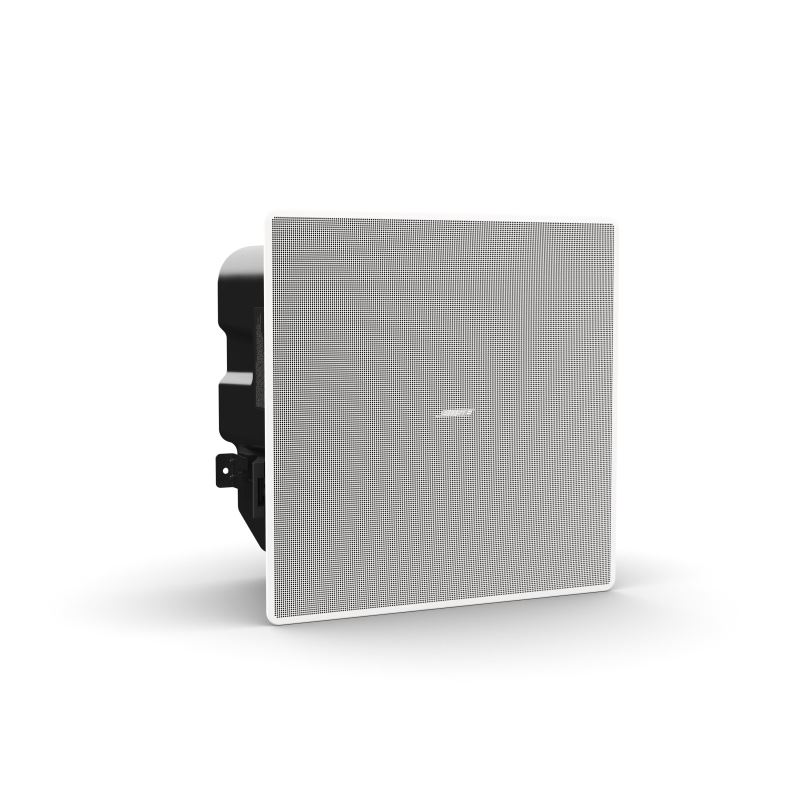

- Magnetically attached grill – for quick access to wiring and tap settings
- UL1480A listing – for air-handling (plenum) space installation
Applications:
- Retail stores
- Restaurants and bars
- Concourse
- Transportation facilities
- Resorts and hospitality venues
- Houses of worship
- Conferencing
This product is also used for: Toyota Showroom, Intercontinental Hotel.
| Răspuns în frecvență (-3 dB) |
50 Hz - 18 kHz
|
| Gama de frecvență (-10 dB) |
45 Hz - 20 kHz
|
| Dispersie |
75⁰ vertical, 90⁰ horizontal
|
| Sensibilitate |
96 dB SPL
|
| Presiune sonoră maximă (SPL) calculat 1m |
117 dB
|
| Presiune sonoră maximă (SPL) calculat, vârf |
123 dB
|
| Difuzoare |
1 x 8 inch, 1 x compression
|
| Putere |
125 W
|
| Putere - vârf |
500 W
|
| Impedanța |
8 ohm (transfmer bypass)
|
| Culoare |
white (it can be paintes)
|
| Cod produs |
778844-0220
|
